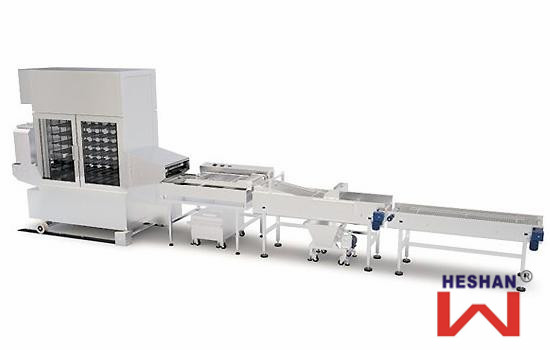

DAL Series Automatic yeast Donut Production Line
全自动DAL Series Automatic yeast Donut Production Line

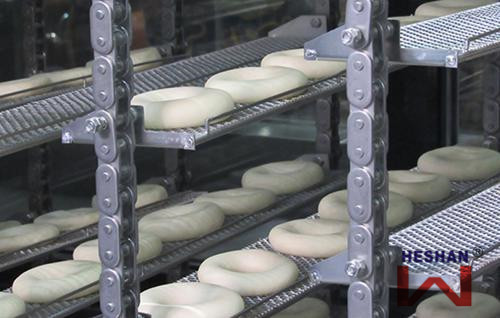

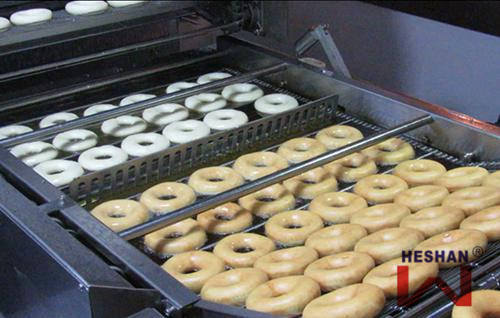

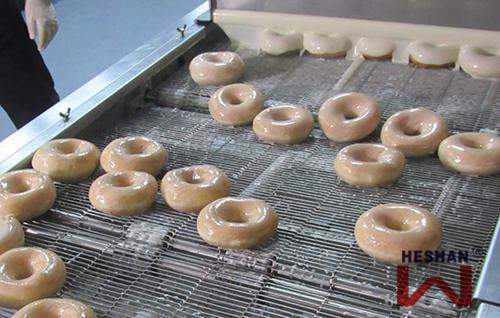

Our DAL series donut line is utilized to make yeast-raised donuts with least manual efforts and utmost outputs or results. The donuts are mechanically cut straight onto the proofing table with trays. The trays are then mechanically passed all the way through the automatically managed proofer. Then the proofed donuts are passed to the frying unit. The proofer are at a velocity harmonized to the fryer, glazer and cooling conveyor sections, making certain of high or superior donut quality. If the competence is larger than 2400pcs, the line will be provided with rolling cutter as a substitute of extruder for shaping the donuts.
Parameters：
|
Kinds |
Donut Series Automatic Production Line |
|
Model |
DAL-1200 |
DAL-2400 |
DAL-4800 |
DAL-7200 |
DAL-9600 |
|
Output (pcs/h) |
1000-1200 |
2000-2400 |
4500-4800 |
6800-7200 |
9000-9600 |
|
Power |
Electrical |
Gas |
Electrical |
Gas |
Electrical |
Gas |
Electrical |
Gas |
Electrical |
Gas |
|
34kW |
22kW |
47kW |
29kW |
80kW |
44kW |
102kW |
57kW |
130kW |
70kW |
|
Voltage and Frequency |
3PH, 380V, 50Hz |
3PH, 380V, 50Hz |
3PH, 380V, 50Hz |
3PH, 380V, 50Hz |
3PH, 380V, 50Hz |
|
Zones of Proofer |
1 zone |
2 zones |
4 zones |
6 zones |
8 zones |
|
Basic proofing time(mins) |
40 |
40 |
40 |
40 |
40 |
|
Type of Gas |
Natural Gas/Oil Gas |
Natural Gas/Oil Gas |
Natural Gas/Oil Gas |
Natural Gas/Oil Gas |
Natural Gas/Oil Gas |
|
Dimension(mm) |
11010*1800*2595 |
13600*1800*2595 |
18757*1800*2595 |
23965*1800*2595 |
29145*1800*2595 |
|
Model |
DAL-1200 (Gas) |
DAL-2400 (Gas) |
DAL-4800 (Gas) |
DAL-7200 (Gas) |
DAL-9600 (Gas) |
|
Fryer(mm) |
1185*847*188 |
1755*847*188 |
2900*847*188 |
4040*847*188 |
5200*847*188 |
|
Proofer(mm) |
4625*1800*2595 |
6645*1800*2595 |
10685*1800*2595 |
14725*1800*2595 |
18765*1800*2595 |
|
Glazer(mm) |
1800*1320*1160 |
1800*1320*1160 |
1800*1320*1160 |
1800*1320*1160 |
1800*1320*1160 |
|
Cooling Conveyor(mm) |
1800*932*945 |
1800*932*945 |
1800*932*945 |
1800*932*945 |
1800*932*945 |
Packaging and shipping
Packaging requirement of the machine is exterior or outside wrap up with Wooden wadding that meet the exported Standard provided. On the other hand in regards to Shipping, we can be accountable for the shipping pertaining to the clients’ necessities, for instance, delivering the appliance by sea, direct or air. Certainly, we can as well agree to and oblige with your mediator or agent if you have transport forwarder in China.
